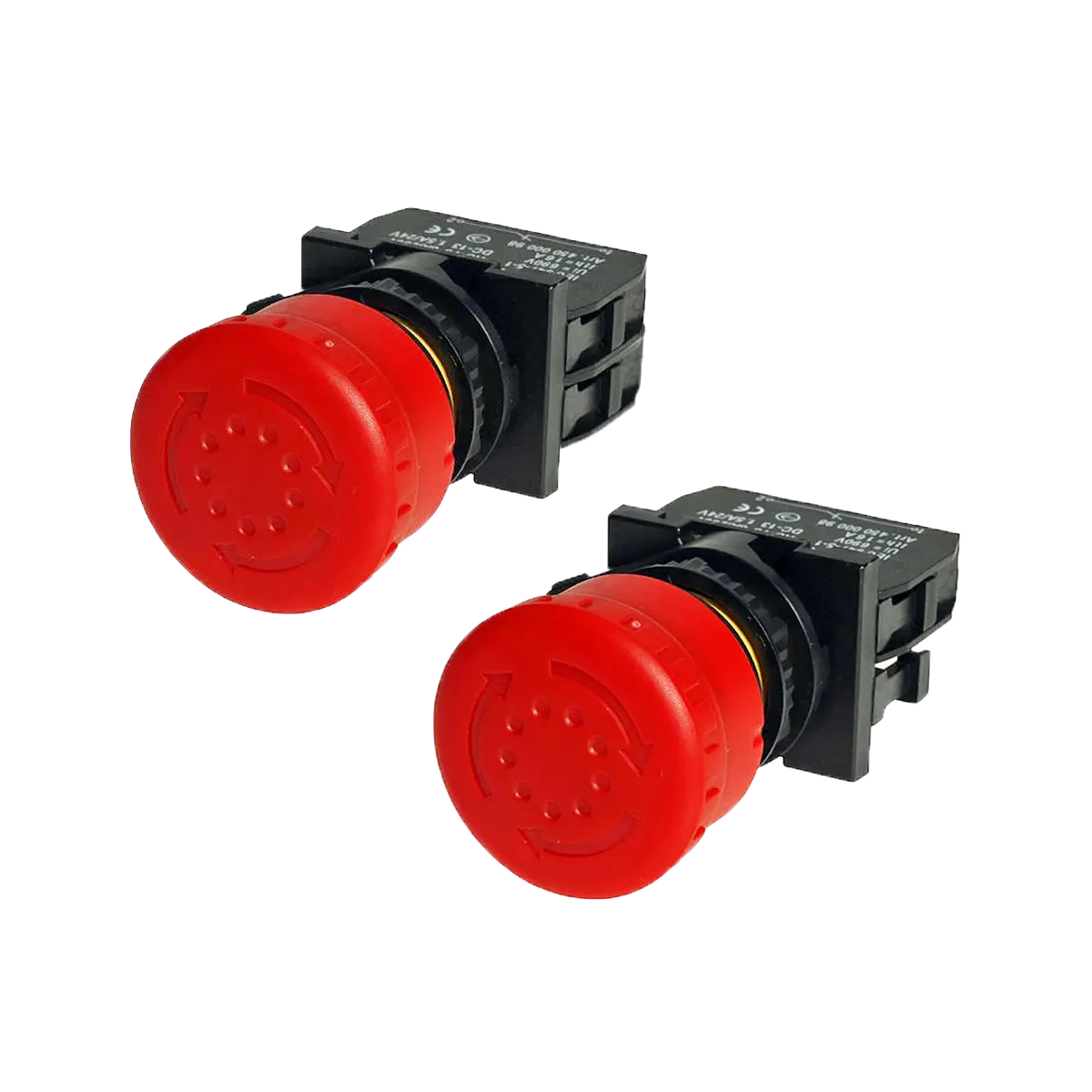

Emergency stop switching devices
according to EN60204-1, IEC60947-5-5, EN418
Description
Features
- Manually operated mushroom button with locking
- Bypass safe
- Degree of protection: IP65
- Maximum 2 switching elements possible, e.g. 1 normally open, 2 normally open or 1 normally open + 1 normally closed
Series Specifications
Actuation
Manually operated mushroom push button with latching, tamper-proof.
Mushroom
Diameter 40mm, red
Reserving
Turn to the right.
degree of protection
IP65
Switching element
forced opening according to IEC 947-5-1 EN 60947-5-1 (max. 2 pieces)
rated isolation voltage
690 V AC
Rated impulse voltage strength Uimp
4 kV
Conventional thermal current
16 A
Rated operating current AC15
6.0A at AC-230V; 4.0A at AC-400V
Rated operating current AC1
8.0A at AC-250V; 6.0A at AC-400V
Rated operating current DC13
1.5A at 24V
B10d
100,000
Permissible ambient temperature
-10°C ... +50°C
Installation borehole
23 mm
Height (from housing edge)
26 mm
Installation depth
40 mm
Controls
Mechanical lifespan
0.1x106 switching cycles
Contact elements according to IEC 947-5-1
Switching voltage / current AC15
10.0A at AC-250V / 8.0A at AC-400V
Switching voltage / current AC1
16.0A at AC-250V / 12.0A at AC-400V
Switching voltage / current DC13
2.0A/24V
Electrical lifespan
0.5x106 switching cycles
Electrical lifespan AC15
6.0A at AC-230V / 4.0A at AC-400V
Electrical lifespan AC1
8.0A at AC-250V / 6.0A at AC-400V
Electrical lifespan DC-13
1.5A/24V
Rated impulse voltage strength
4 kV
Connectable cross-sections
max. 2x2.5mm²
Maximum backup
10A (gL according to VDE0636)
B10 (B10d)
500,000 (666,000)
