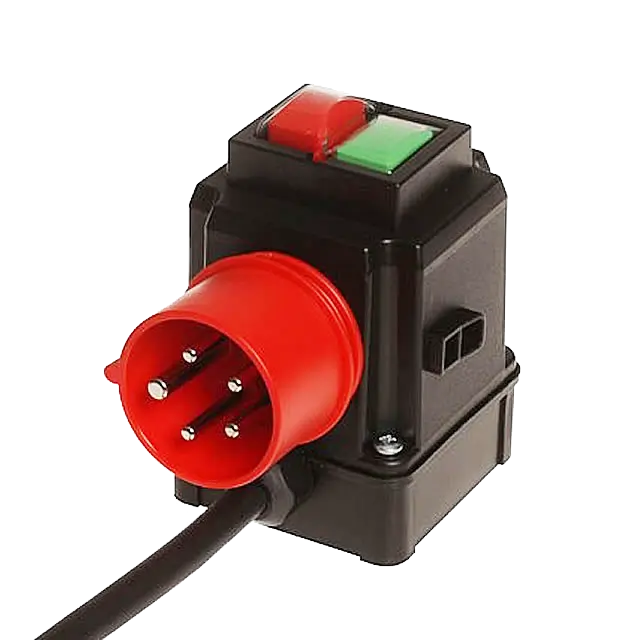

Starter 3Ph-400V, Series K900
Description
Features
- With undervoltage release (standard) for protection against unintentional restart after voltage drop and voltage recovery
- Available with electronic brake
- Available with integrated overload protection (fixed to motor rated current)
- Alternatively available without undervoltage release
Please note that the following versions are example configurations. Due to the many combination possibilities of the individual components, we are able to produce a wide range of models. If your desired configuration is not included in these versions, please contact us.
Series Specifications
Start-up
Direct start
Rated operating voltage Ue
400V/50Hz
Rated switching capacity AC-3
4.0kW 400V~
rated operating current Ie
9.0 A
Connection
3-phase 400V
contactor
KB-04
Network input
CEE collar plug or power cable
Actuation type
Push buttons On/Off
Button panel
with protective cap
Installation position
Any, except keyboard up.
Mounting dimension
68x68 mm
switching functions
0-1
Pre-coverage
16A gL/gG
Ambient temperature
-10°C...+40°C
Housing material
PP black
Material collar plug
PA6 red
Protection class
IP54
Conformity
CE
Additional Views and Drawings
Versions
| Artikel-Nr | Bild | Under-voltage release Uc | electronic brake | Wiring for mechanical brake | Overload protection |
|---|---|---|---|---|---|
| 0097.4528 6 |  | 400V/50Hz | No | No | No |
| 0098.0900 9 |  | No | No | No | No |
| 0098.0901 20 |  | 400V/50Hz | No | No | Yes, 3-pole. |
| 0098.0902 13 |  | 400V/50Hz | No | No | Yes, 3-pole. |
| 0098.9001 72 |  | 400V/50Hz | No | No | No |
| 0098.9002 80 |  | 400V/50Hz | Yes | No | No |
| 0098.9005 18 |  | 400V/50Hz | Yes | No | Yes, 2-pole. |
| 0098.9006 30 |  | 230V/50Hz | Yes | Yes | Yes, 3-pole. |
| 0098.9007 2 |  | No | No | No | No |
| 0098.9010 16 |  | 400V/50Hz | No | No | No |
| 0098.9020 2 |  | 400V/50Hz | No | No | No |
| 0098.9030 5 |  | 400V/50Hz | No | No | No |
| 0098.9050 |  | 400V/50Hz | No | No | No |
| 0098.9060 |  | 230V/50Hz | No | No | No |
| 0098.9061 16 |  | 400V/50Hz | No | No | Yes, 2-pole. |
| 0098.9070 7 |  | 230V/50Hz | No | No | Yes, 3-pole. |
| 0098.9074 1 |  | 230V/50Hz | No | No | Yes, 2-pole. |
| 0098.9075 10 |  | 400V/50Hz | No | No | Yes, 3-pole. |
| 0098.9076 7 |  | 230V/50Hz | Yes | No | No |
| 0098.9080 36 |  | 230V/50Hz | Yes | No | No |
| 0098.9083 |  | 400V/50Hz | Yes | No | Yes, 2-pole. |
| 0098.9090 31 |  | 230V/50Hz | Yes | No | Yes, 2-pole. |
| 4700.0027 340 |  | 400V/50Hz | No | No | No |
