Contactor ABB AF series
according to IEC 947-4-1, EN60947, DIN VDE0660 part 102
Description
Features
- Powerful contactor for switching motors, lighting systems, heating, capacitors, and more.
- With a very wide voltage range
- Power classes of 7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW, 37kW, and 45kW
- Can be used even with larger voltage drops due to the wide voltage range
- With coil electronics for AC+DC operation
- Expandable with thermal overload protection TF42
- Mounting via screws or DIN rail
- Note: The use of a star-delta time relay with dwell time is not permitted
Versions
| Artikel-Nr | Bild | Designation | Rated operational power AC-3 at 400V (kW) | Rated operational power AC-3 at 230V (kW) | Rated current AC-3 at 400V (A) | Coil voltage (V) | Number of contacts | Expandable through auxiliary switches |
|---|---|---|---|---|---|---|---|---|
| 4036.7761 > 5 |  | AF16-30-10-11 | 7.5 | 4.0 | 18 | 24...60V/50-60Hz, 20...60V DC | 3s1Hs | Yes |

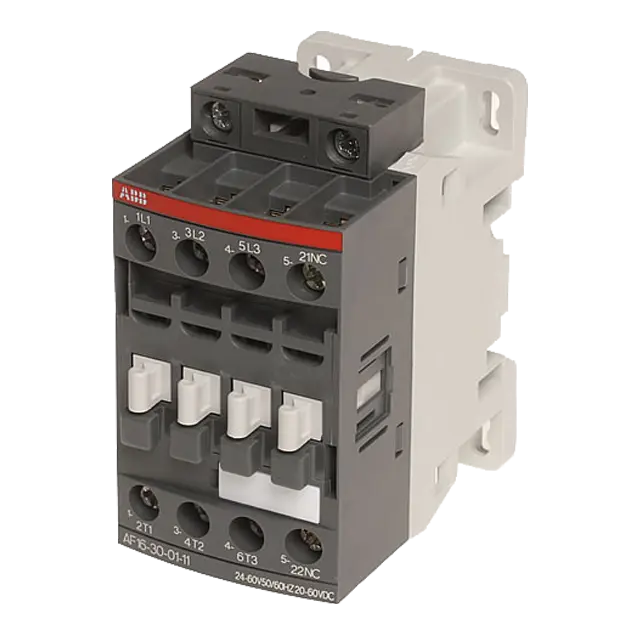

| 4036.7762 > 5 | | AF16-30-01-11 | 7.5 | 4.0 | 18 | 24...60V/50-60Hz, 20...60V DC | 3s1Hö | Yes |
| 4036.7763 > 5 | | AF16-30-10-12 | 7.5 | 4.0 | 18 | 48...130V/50-60Hz, 48...130V DC | 3s1Hs | Yes |
| 4036.7764 > 5 | | AF16-30-10-13 | 7.5 | 4.0 | 18 | 100...250V/50-60Hz, 100...250V DC | 3s1Hs | Yes |
| 4036.7765 3 | | AF16-30-01-13 | 7.5 | 4.0 | 18 | 100...250V/50-60Hz, 100...250V DC | 3s1Hö | Yes |
| 4036.7766 2 | | AF16-30-10-14 | 7.5 | 4.0 | 18 | 250...500V/50-60Hz, 250...500V DC | 3s1Hs | Yes |
| 4036.7767 4 | | AF16-30-01-14 | 7.5 | 4.0 | 18 | 250...500V/50-60Hz, 250...500V DC | 3s1Hö | Yes |
| 4036.7768 | | AF26-30-00-11 | 11 | 6.5 | 76 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |

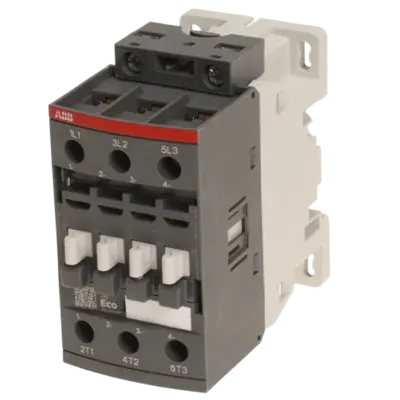

| 4036.7769 | | AF26-30-00-12 | 11 | 6.5 | 76 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7770 | | AF26-30-00-13 | 11 | 6.5 | 76 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7771 > 5 | | AF26-30-00-14 | 11 | 6.5 | 76 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7772 1 | | AF30-30-00-11 | 15 | 9.0 | 32 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7773 | | AF30-30-00-12 | 15 | 9.0 | 32 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7774 4 | | AF30-30-00-13 | 15 | 9.0 | 32 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7775 | | AF30-30-00-14 | 15 | 9.0 | 32 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7776 | | AF38-30-00-11 | 18.5 | 11 | 38 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7777 | | AF38-30-00-12 | 18.5 | 11 | 38 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7778 2 | | AF38-30-00-13 | 18.5 | 11 | 38 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7779 5 | | AF38-30-00-14 | 18.5 | 11 | 38 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7782 | | AF16-30-01-12 | 7.5 | 4.0 | 38 | 48...130V/50-60Hz, 48...130V DC | 3s1Hö | Yes |

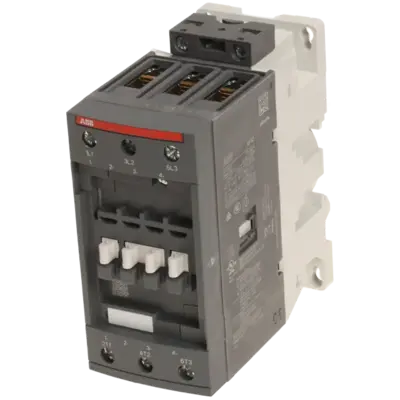

| 4036.7830 | | AF40-30-00-11 | 18.5 | 11 | 40 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7831 | | AF40-30-00-12 | 18.5 | 11 | 40 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7832 4 | | AF40-30-00-13 | 18.5 | 11 | 40 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7833 | | AF40-30-00-14 | 18.5 | 11 | 40 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7834 | | AF52-30-00-11 | 22 | 15 | 53 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7835 | | AF52-30-00-12 | 22 | 15 | 53 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7836 | | AF52-30-00-13 | 22 | 15 | 53 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7837 | | AF52-30-00-14 | 22 | 15 | 53 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7838 | | AF65-30-00-11 | 30 | 18.5 | 65 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7839 | | AF65-30-00-12 | 30 | 18.5 | 65 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7840 | | AF65-30-00-13 | 30 | 18.5 | 65 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7841 | | AF65-30-00-14 | 30 | 18.5 | 65 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7842 | | AF80-30-00-11 | 37 | 22 | 80 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7843 | | AF80-30-00-12 | 37 | 22 | 80 | 48...130V/50-60Hz, 48...130V DC | 3s | Yes |
| 4036.7844 | | AF80-30-00-13 | 37 | 22 | 80 | 100...250V/50-60Hz, 100...250V DC | 3s | Yes |
| 4036.7845 | | AF80-30-00-14 | 37 | 22 | 80 | 250...500V/50-60Hz, 250...500V DC | 3s | Yes |
| 4036.7846 | | AF96-30-00-11 | 45 | 25 | 96 | 24...60V/50-60Hz, 20...60V DC | 3s | Yes |
| 4036.7847 | | AF96-30-00-12 | 45 | 25 | 96 | 48...130V/50-60Hz, 48...130V DC | Yes | |
| 4036.7848 | | AF96-30-00-13 | 45 | 25 | 96 | 100...250V/50-60Hz, 100...250V DC | Yes | |
| 4036.7849 | | AF96-30-00-14 | 45 | 25 | 96 | 250...500V/50-60Hz, 250...500V DC | Yes |
