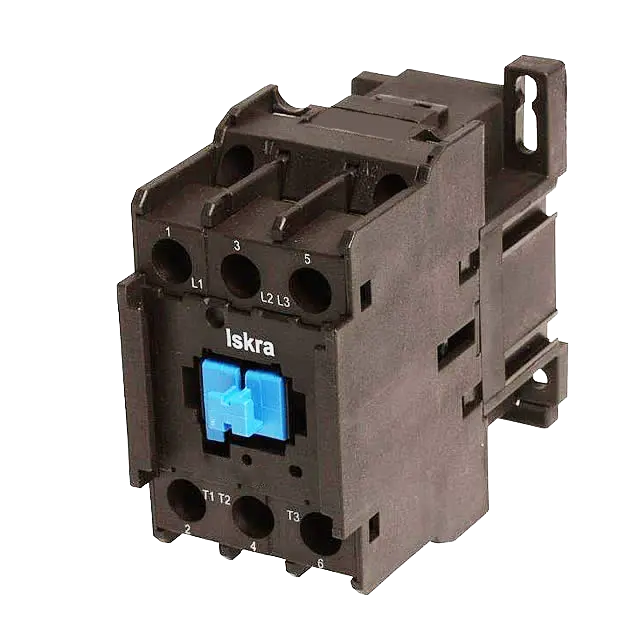

Contactor Iskra KNL series
according to IEC 947-4-1, EN60947, DIN VDE0660 Part 102
Description
Features
- High-performance contactor for switching motors
- Mounting via screws or DIN rail
- Versions KNL16 - KNL30: UL/CSA approved
Series Specifications
Power class
7.5kW, 11kW, 15kW, 18.5kW, 22kW, 30kW - AC-3/400V
Versions
| Artikel-Nr | Bild | Designation | Rated operational power AC-3 at 400V (kW) | Rated operational power AC-3 at 230V (kW) | Coil voltage (V) | Number of contacts | Expandable through auxiliary switches |
|---|---|---|---|---|---|---|---|
| 4036.7899 > 5 |  | KNL16-01 | 7.5 | 4.0 | 220...240V/50/60Hz | 3s1Hö | Yes |
| 4036.7900 > 5 | | KNL16-01 | 7.5 | 4.0 | 380...415V/50/60Hz | 3s1Hö | Yes |
| 4036.7901 | | KNL16-10 | 7.5 | 4.0 | 220...240V/50/60Hz | 3s1Hs | Yes |
| 4036.7902 > 5 | | KNL16-10 | 7.5 | 4.0 | 380...415V/50/60Hz | 3s1Hs | Yes |
| 4036.7904 | | KNL16-01 | 7.5 | 4.0 | 380...415V/50/60Hz | 3no1nc | Yes |
| 4036.7907 > 5 |  | KNL22-00 | 11 | 5.5 | 220...240V/50/60Hz | 3s | Yes |
| 4036.7908 > 5 | | KNL22-00 | 11 | 5.5 | 380...415V/50/60Hz | 3s | Yes |
| 4036.7909 > 5 |  | KNL30-00 | 15 | 7.5 | 220...240V/50/60Hz | 3 seconds | Yes |
| 4036.7910 > 5 | | KNL30-00 | 15 | 7.5 | 380...415V/50/60Hz | 3s | Yes |
| 4036.7911 > 5 |  | KNL38-00 | 18.5 | 8 | 220...240V/50/60Hz | 3s | Yes |
| 4036.7912 > 5 | | KNL38-00 | 18.5 | 8 | 380...415V/50/60Hz | 3s | Yes |
| 4036.7913 5 |  | KNL43-11 | 22 | 12.5 | 220...240V/50/60Hz | 3s+1Hs+1Hö | Yes |
| 4036.7914 |  | KNL43-11 | 22 | 12.5 | 380...415V/50/60Hz | 3s + 1Hs + 1Hö | Yes |
| 4036.7915 1 |  | KNL63-11 | 30 | 15 | 220...240V/50/60Hz | 3s+1Hs+1Hö | Yes |
| 4036.7916 5 |  | KNL63-11 | 30 | 15 | 380...415V/50/60Hz | 3s+1Hs+1Hö | Yes |
