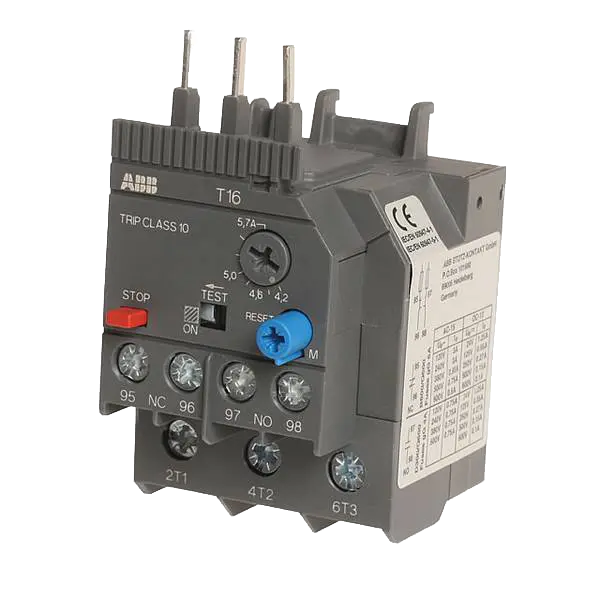

Thermal overload relay ABB T16
for ABB B7 series breakers
Description
Features
- Manual or automatic reset selectable
- Phase failure sensitivity according to IEC/EN 60947-4-1
- TEST and STOP functions - Triggered indication on the front
- Temperature compensation
- Suitable for both single-phase and three-phase applications
Series Specifications
Rated operating voltage Ue
690 V
Impulse voltage withstand capability
6 kV
Permissible storage temperature
-50°C ... +80°C
Permissible operating temperature
-25°C ... +60°C
Installation location
Arbitrary
Fastening
Hanging on the contactor, tightening at the main terminal blocks.
Terminal connections
Screw terminals
Versions
| Artikel-Nr | Bild | Execution | Adjustment range (A) |
|---|---|---|---|
| 4036.6554 |  | T16-0.13 | 0.10...0.13 |
| 4036.6555 | | T16-0.17 | 0.13...0.17 |
| 4036.6556 | | T16-0.23 | 0.17...0.23 |
| 4036.6557 2 | | T16-0.31 | 0.23...0.31 |
| 4036.6558 | | T16-0.41 | 0.31...0.41 |
| 4036.6559 3 | | T16-0.55 | 0.41...0.55 |
| 4036.6560 | | T16-0.74 | 0.55...0.74 |
| 4036.6561 | | T16-1.0 | 0.74...1.00 |
| 4036.6562 4 | | T16-1.3 | 1.00...1.30 |
| 4036.6563 4 | | T16-1.7 | 1.30...1.70 |
| 4036.6564 5 | | T16-2.3 | 1.70...2.30 |
| 4036.6565 > 5 | | T16-3.1 | 2.30...3.10 |
| 4036.6566 4 | | T16-4.2 | 3.10...4.20 |
| 4036.6567 > 5 | | T16-5.7 | 4.20...5.70 |
| 4036.6568 2 | | T16-7.6 | 5.70...7.60 |
| 4036.6569 > 5 | | T16-10 | 7.60...10.0 |
| 4036.6570 | | T16-13 | 10.0...13.0 |
| 4036.6571 2 | | T16-16 | 13.0...16.0 |
