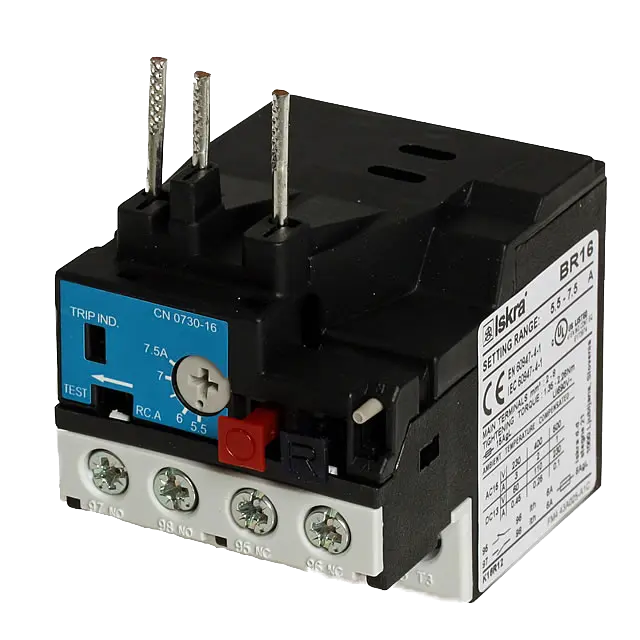

Thermal overload relay ISKRA BR16
for fuses KLIBO7.5, ABB A9...A40, ABB AF16, and ISKRA KNL16...18.
Description
Features
- According to IEC/EN 60947-4-1
- Alternative to overload relay ABB TA25DU
- 3-pole overload relay
- Protection for motors up to 16A operating current and 690V operating voltage
- Electrically isolated auxiliary contacts (1 normally closed, 1 normally open)
- Manual or automatic reset selectable
- Phase failure sensitivity according to IEC/EN 60947-4-1
- Temperature compensation
- UL approval
Series Specifications
Rated operating voltage Ue
690 V
Impulse voltage withstand capability Uimp
6 kV
Allowed operating temperature
-5°C ... +55°C
Protection class
IP20
Installation position
Arbitrary
Fastening
Hanging on the contactor, tightening in the main terminal connections.
Connection terminals
Screw terminals
Connection cross-sections
2x 1.0 - 10 sqmm (fine-stranded with AEH)
Connection cross-sections auxiliary contacts
2x 0.75-2.5 mm² (fine stranded with AEH)
Trigger class
10
Switching frequency
Up to 15 cycles/hour or 60 cycles/hour with 40%.
Settings and notes - see also "More images".
Warning:
Insufficiently tightened clamping screws can lead to excessive heating. The device may only be connected by qualified personnel. Do not touch live parts!
Commissioning Check:
Press the "O" switch to reset the relay. By pressing the slider "2" in the direction of the arrow, the device triggers. Contact 95-96 opens, contact 97-98 closes. In the off state, the switching position indicator shows "1" in yellow.
Setting to Rated Motor Current:
The setting to rated motor current is done by turning the adjustment knob (3) until the pointer of the knob is aligned with the desired rated current value.
Switching Hand - Automatic Reset:
Manual Reset:
The button "R" (4) resets the triggered overload protection. Please ensure sufficient cooling time.
Automatic Reset:
Press and hold the button "R" (4) while moving the slider (5) in the direction of the arrow until it clicks into place. After releasing the slider, the button "R" (4) must remain pressed.
Auxiliary Switch:
Normally open contact 95-96, normally closed contact 97-98 are galvanically separated. Short-circuit protection for the auxiliary switch 6A AC. The normally closed auxiliary contact 97-98 can be used to activate a signaling circuit. A single circuit changeover contact can be achieved by inserting a bridge between terminals 95 and 97.
Additional Views and Drawings
Versions
| Artikel-Nr | Bild | Adjustment range (A) |
|---|---|---|
| 4036.7351 > 5 |  | 0.1 - 0.16 |
| 4036.7352 > 5 | | 0.16 - 0.25 |
| 4036.7353 2 | | 0.25 - 0.4 |
| 4036.7354 > 5 | | 0.35 - 0.5 |
| 4036.7355 3 | | 0.45 - 0.63 |
| 4036.7356 5 | | 0.55 - 0.8 |
| 4036.7357 3 | | 0.75 - 1 |
| 4036.7358 3 | | 0.9 - 1.3 |
| 4036.7359 > 5 | | 1.1 - 1.6 |
| 4036.7360 3 | | 1.4 - 2 |
| 4036.7361 > 5 | | 1.8 - 2.5 |
| 4036.7362 > 5 | | 2.3 - 3.2 |
| 4036.7363 > 5 | | 2.9 - 4 |
| 4036.7364 > 5 | | 3.5 - 4.8 |
| 4036.7365 > 5 | | 4.5 - 6.3 |
| 4036.7366 > 5 | | 5.5 - 7.5 |
| 4036.7367 > 5 | | 7.2 - 10 |
| 4036.7368 > 5 | | 9 - 12.5 |
| 4036.7369 > 5 | | 11.3 - 16 |
| 4036.7370 > 5 | | 15 - 20 |
