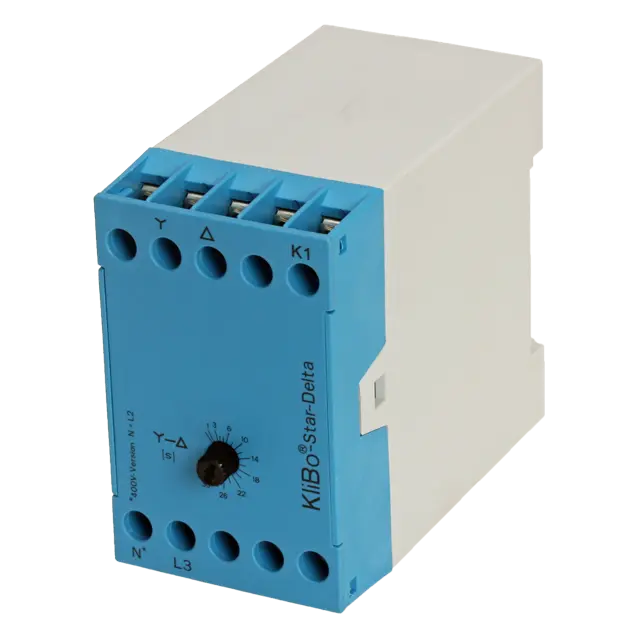

KLIBO-Star-Delta-Timer
For the automatic start of star-delta.
Description
Features
- Adjustable ramp-up time
- Relay outputs 5A
- Controller-controlled with watchdog
- Specifically designed for star-delta starting of squirrel cage motors
Functional Description
The KLIBO star-delta timer is specifically designed for the star-delta starting of squirrel cage motors. The starting times can be individually adjusted to the respective application. All other switching sequences are time-optimized and controlled and monitored by a controller with a watchdog. The output signals for star and delta are switched by powerful relays.
Series Specifications
Rated frequency
50-60 Hz
Voltage range
85-110 %
Rated power
2 VA
Ambient temperature
-10°C ... +55°C
Control input K1
Same potential as input L3
Time domain star-delta
0.15 sec ... 30 sec
Star-delta switching time
approximately 60 ms
Mode of operation
Controller controlled with watchdog.
B10 (B10d)
400,000 (800,000)
Max. connection cross-section
2.5 mm²
Fastening
On DIN standard rails (EN60715)
Dimensions (WxHxD)
45.5 x 74 x 85 mm
Approvals
VDE, UL, CUR
Relay outputs
Rated voltage
250 V AC
Continuous current
5 A
Inrush current
5 A
rated switching power
1250 VA
Contact material
AgSnO
Mechanical lifespan
50x106 switching cycles
Electrical lifespan at 5A/250V AC
100x103 switching cycles
Max. switching frequency at rated load
360 switching operations/h
Response time/ decay time
10/10 ms
Test voltage contact coil
4000 V ACeff
Testing voltage open contact
750 V ACeff
Installation position
Arbitrary
Vibration resistance (30...500Hz)
G>4
Shock resistance 11ms
G>10
