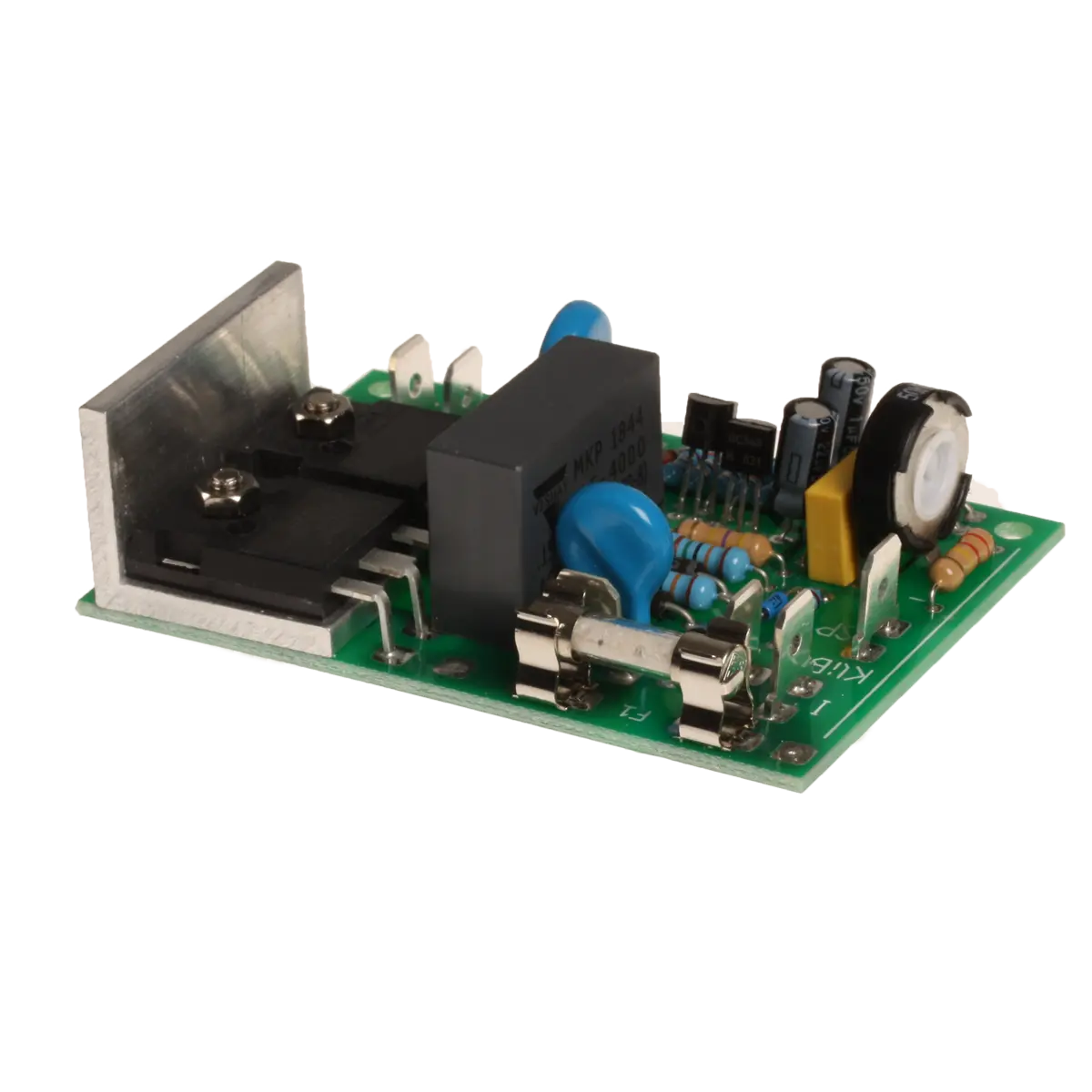

Electronic motor brake up to 16A
Description
Features
- For slowing down three-phase and single-phase motors
- Brake system according to DIN EN 19085-1, PL = b according to DIN EN ISO 13849-1 and meets the requirements of EN60204 Sec. 9.2.5.4.2 "Emergency stop" in category 1
- Maintenance-free
- Standard brake module, hence cost-effective
- High operational safety
- Especially powerful electronic brake
- High voltage resistance
- Minimal installation effort, as the brake module can be integrated into all common series
- Adjustable braking current
- No braking ventilation required (necessary for mechanical brakes, e.g., for knife changes)
Series Specifications
Rated voltage
230V 50-60Hz or 400V 50-60Hz, depending on the version.
Max. braking current
16A
Performance Level
PL = b according to DIN EN ISO 13849-1
PFH
3.8 x 10^-6 h^-1
Mean Time to Failure (dangerous failure)
278
Test number.
IFA1603009
Power semiconductor
Thyristor = 25A/1200V Diodes = 40A/1200V
Pre-insurance
16AgL
Connections
with flat spade connectors 6.3x0.8mm
Brake current setting
Continuously adjustable, motor and circuit dependent.
brake frequency
10% duty cycle at 10 seconds braking time (36/h)
activation time
Approx. 200ms
control unit
Analog. Option: Automated and controller-driven.
Function
Phase control
Mode of action
Direct current braking
Use
Sine wave mains voltage required, limited generator operation.
ambient temperature
-10°C ... +45°C
Storage temperature
-25°C ... +75°C
self-consumption
230V / 400V approx. 0.3W / 0.6W
Dimensions
75 x 54 x 24mm (LxWxH)
Weight
approximately 58g
