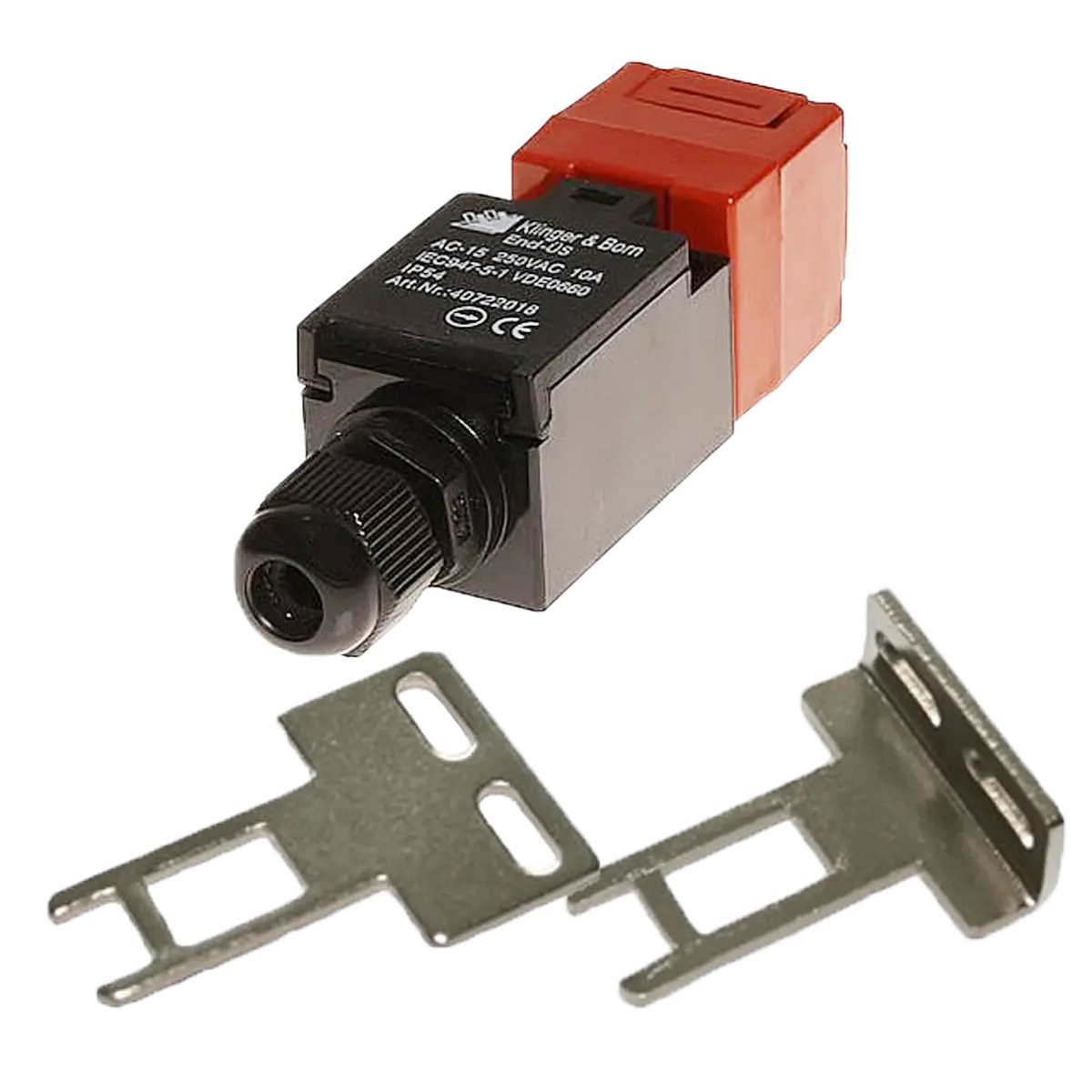

Door switch
according to IE947, EN60947
Description
Special Features
- High resistance to manipulation compared to conventional limit switches
- Built according to VDE0660, 0110, and 0113 standards
Safety limit and position switches are specifically designed for protective covers, doors, hoods, etc. Unlike conventional limit switches, they differ in terms of resistance to manipulation. This means that actuating the limit switch using simple tools such as screwdrivers, rotary knobs, etc., is not possible.
This safety door switch is particularly suitable for position monitoring of protective covers, safety grids, doors, flaps, and hoods.
Series Specifications
Max. continuous current
12A / 8A
Max. switching frequency
30/min
Mechanical lifespan
1x105 switching cycles
Protection class
IP54
Operating temperature
-30°C ... +60°C
Structure
According to VDE 0660, 0110, and 0113.
Contact
forced disconnecting
Contact 4072.2016
With angled latch, latch pulled = contact open, latch inserted = contact closed, 2 normally open contacts.
Contact 4072.2018
With angled lever, lever pulled = contact closed, blade inserted = contact open, 2 normally open contacts.
Housing
PA
cable entry
M16
B10 (B10d)
50,000 (66,500)
Manufacturing
Made in China with German final inspection
