Pendant control
Precise operation · Robust design · Industrial use - in accordance with EN/IEC 60947-5-1, EN/IEC 60204-32
Description

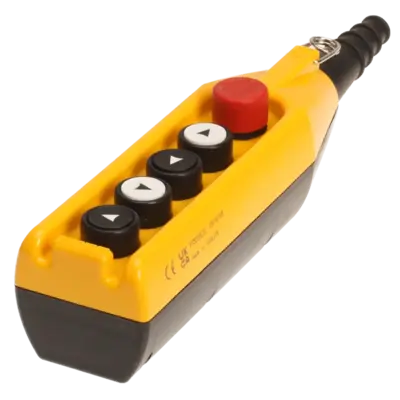

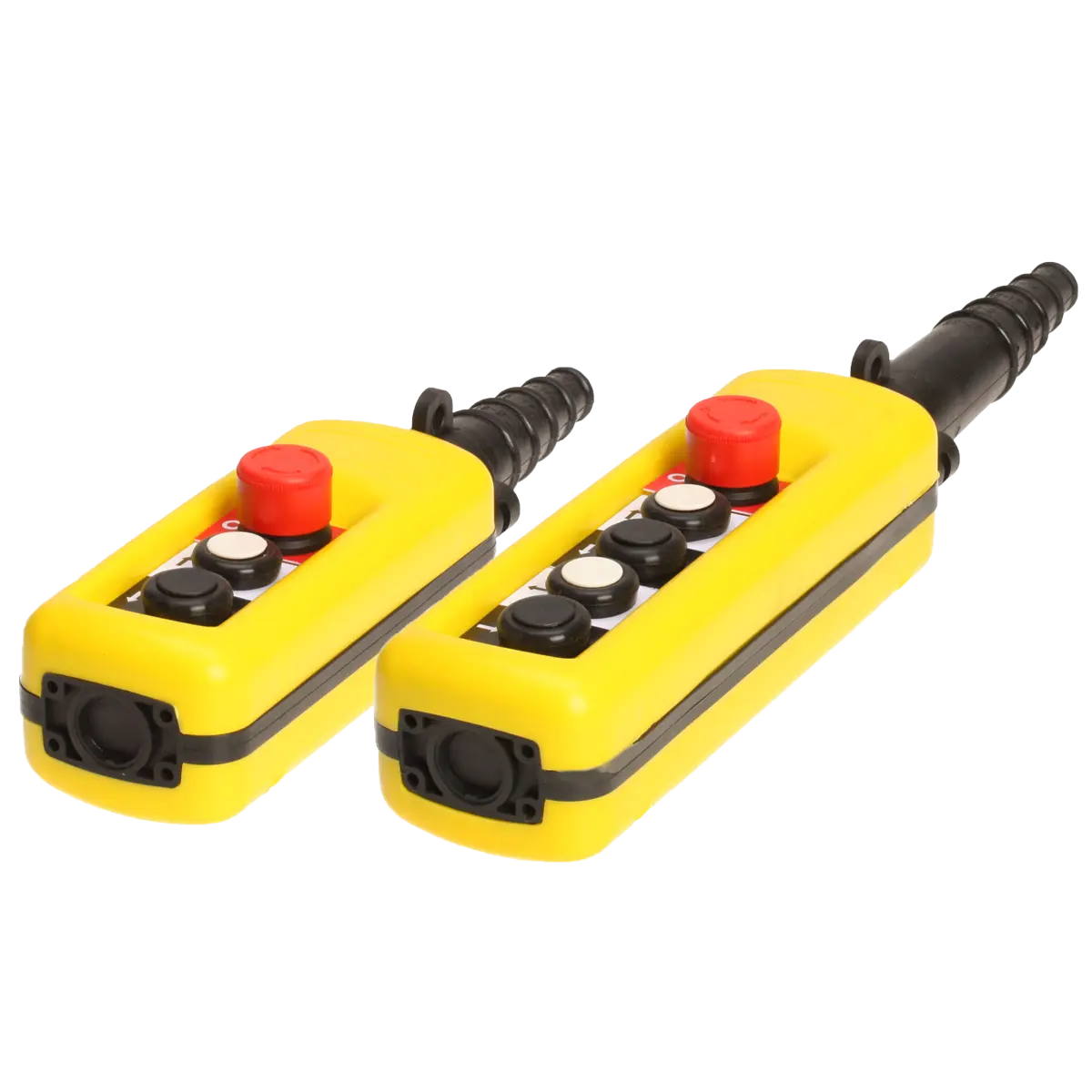

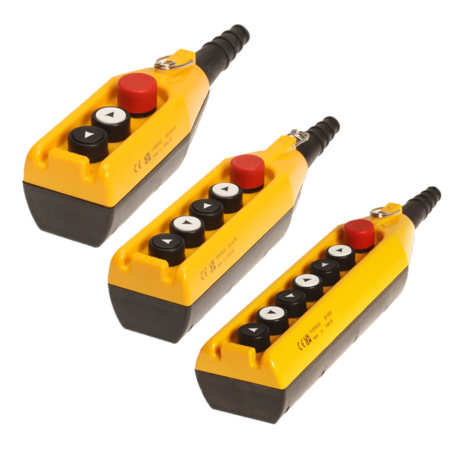

Pendant push-button controls enable the convenient and precise operation of machinery, hoists and industrial plant. As hand-held control units, they offer flexible control directly at the point of use and enable operators to carry out machine movements in a targeted and controlled manner.
Our pendant push-button controls stand out thanks to their robust construction, ergonomic design and reliable switching technology. The durable, impact-resistant housings are designed for use in demanding industrial environments.

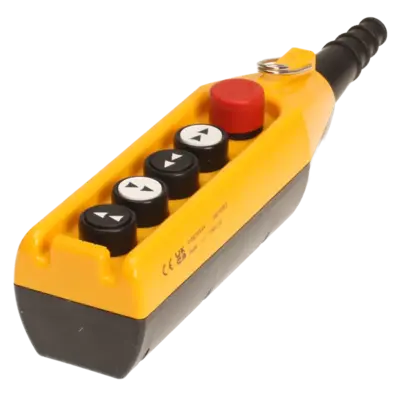

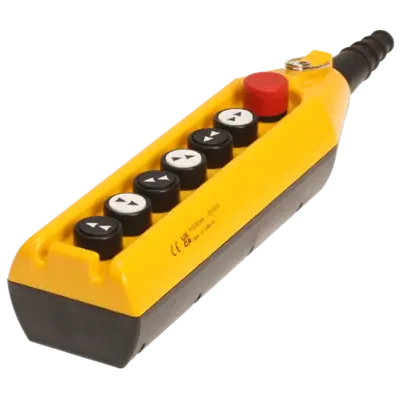

Depending on the model, various push-button combinations are available, featuring up to six push-buttons and an integrated emergency stop function. Variants with two-stage push-buttons also allow for the control of different speed settings.
Features
- Robust, impact-resistant housing
- Circuit type: Control circuit
- Emergency stop button

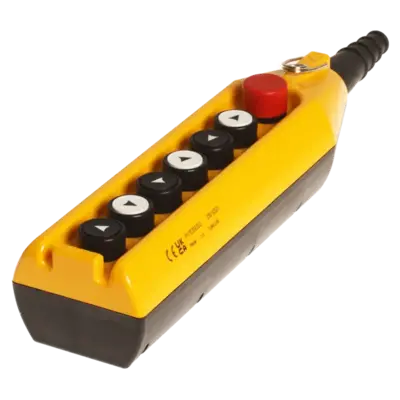

- Up to 6 push buttons
- Double insulated
Series Specifications
Type of control unit
Double insulated
Circuit type
Control circuit
Color of the control unit
Yellow
Vibration resistance
15 g 10...500 Hz IEC 60068-2-6
Impact resistance
100 gn IEC 60068-2-27
Overvoltage category
Class II IEC 61140
Protection class (IP)
IP65 IEC 60529
Protection class (IK)
IK08 EN 50102
Ambient temperature
-15...+80°C
Mechanical lifespan of the button
1,000,000 cycles
Mechanical lifespan emergency stop
100,000 cycles
Nenn isolation voltage Ui
KB-HT: 600V; PV: 300V
Rated impulse voltage withstand Uimp
6 kV IEC 60947-1
Resistance between the terminals
KB-HT: <= 25; PV: <= 10MOhm
