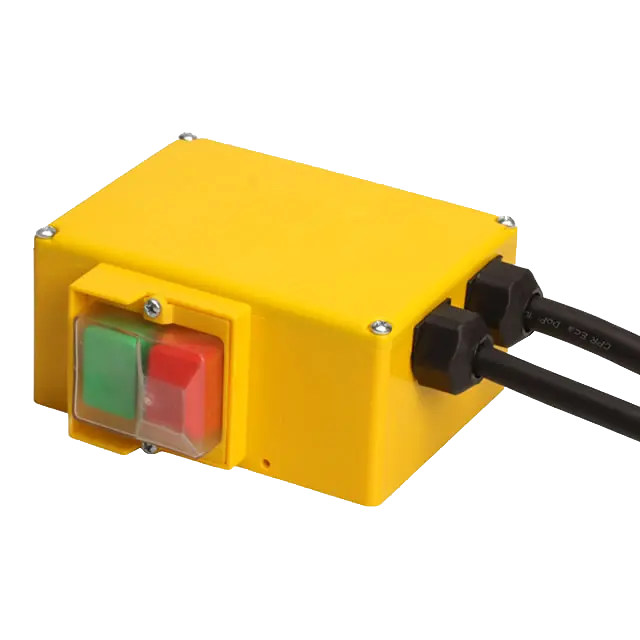

Starter 1Ph-230V, Series K400/1Ph
with undervoltage release according to IEC 204-1, 1992, EN 60204, VDE 0113, Section 7.5
Description
Features
- With undervoltage release (standard) to protect against automatic restart after voltage drop and voltage restoration
- Available with electronic brake
- Available with integrated overload protection
Please note that the following versions are example configurations. Due to the many combinations of individual components, we are able to produce a wide variety of models. If the desired configuration is not included in these versions, please contact us.
Note on plug orientation and cable outlet:
Plug orientation and cable outlet refer to the control panel. The control panel always points to 6 o'clock, see illustration under "Further Views and Drawings". The left cable outlets are only possible without overload protection. Further cable outlets available upon request.
Series Specifications
Start-up
Direct start
Rated operating voltage Ue
230V/50Hz
rated switching capacity
3.0kW 230V~
Rated operating current Ie
13.5 A
Connection
1Ph-230V
Contactor
KB-04
Network input
Network cable
Actuation type
Push buttons On/Off
Keypad
with protective cap
Installation position
Any, except keyboard up
Fixing dimension
68x68 mm
Switching functions
0-1
Switching frequency
60/h
Pre-insurance
16A gL/gG
ambient temperature
-10°C...+40°C
Housing material
ABS black or yellow
degree of protection
IP54
Conformity
CE
Auswahlfilter
Versions
| Artikel-Nr | Bild | Under-voltage release Uc | electronic brake | Overload protection |
Price incl. vat |
|---|---|---|---|---|---|
| 0098.4000 5 |  | 230V/ 50Hz | No | No | 85,01 € |
| 0098.4010 1 |  | 230V/ 50Hz | No | No | 85,01 € |
| 0098.4030 > 5 |  | 230V/ 50Hz | Yes | Yes | 112,12 € |
| 0098.4040 > 5 |  | 230V/ 50Hz | Yes | Yes | 115,82 € |
| 0098.4120 3 |  | 230V/ 50Hz | No | Yes | 92,46 € |
| 0098.8101 > 5 |  | Uc: 230V/ 50Hz | No | Yes | 93,33 € |
