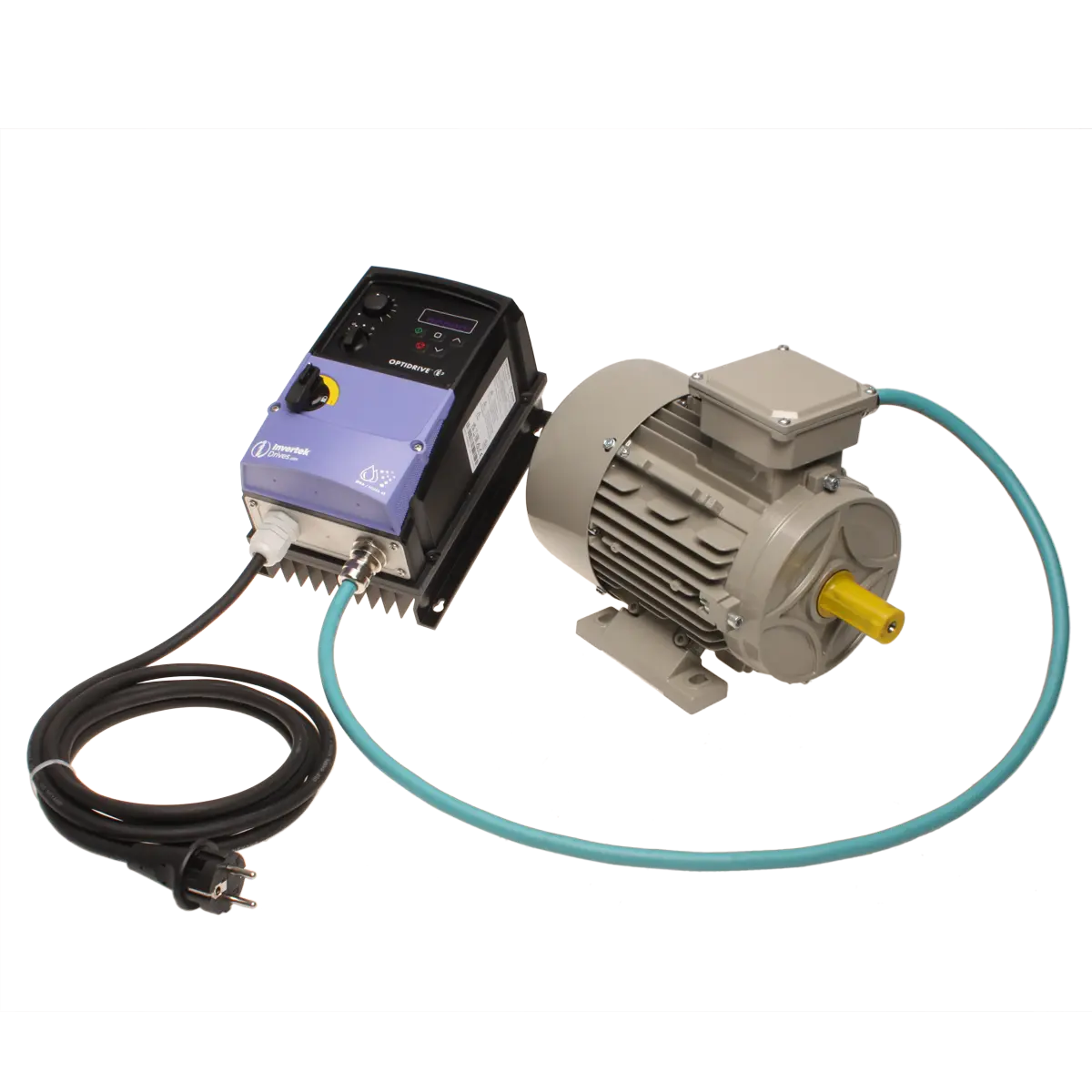

Complete drives with speed control - Plug & Play
Power classes 0.75 - 7.5 kW
Description
Features
- Plug and Play
- Auto-Tune already performed, motor parameters set
- Innovative technology, reliability, robustness, and user-friendliness
- Complete drive concept
- Easy commissioning
- Intuitive keypad control
- Internal EMC filter of category C1
- Sensorless vector control preset
- High overload capacity 150% for 60 seconds / 175% for 2.5 seconds
- Robust motors with energy efficiency class IE3
- For operating mode S1 (continuous operation)
- With SKF ball bearings
- Design B3 - foot mounting (B35, B14, or B34 on request)
- Thermal monitoring with 3x PTC
- With 3m power cable and plug and 1m motor cable
- Degree of protection inverter: IP66 motor IP55
Additional options upon request:
- Design B35, B14, or B34
- Other power classes
- External control panel
- Modified cable lengths
- Parameterization for special applications
Important Notes:
- With prolonged operation at low speeds, the motor may overheat. The motor is equipped with temperature monitoring (PTC). The inverter detects this sensor and shuts down the drive in time. If operation at low speed is desired for an extended period, cooling can be optimized with an external fan.
- Changed cable lengths affect the EMC class.
- The motor speed is factory set to the mains frequency of the motor. Higher frequencies up to 75Hz (+50% of rated frequency) are not a problem for the motor. However, from 80Hz, field weakening occurs, leading to a loss of torque. Speeds above 4500 rpm for a 2-pole motor and above 3000 rpm for a 4-pole motor should be avoided.
- If you have questions about desired changes to the current parameterization, please feel free to contact us.
Series Specifications
Power class
0.75...7.5 kW
Supply voltage 1Ph
200...240 V
Supply voltage 3-phase
380...480 V
Internal EMC filter
Yes
Internal brake chopper Yes
Yes
Protection class (VFD / motor)
IP66 / IP55
Energy efficiency (motor)
IE3
Operating mode
S1
Housing (motor)
Aluminum
Insulation class (motor)
F (IEC - EN60034 - 1)
Cooling type (engine)
IC411
Winding protection
3 x PTCs
Clamp box position
above
Direction of rotation
right/left
Color (motor)
RAL7030 (stone grey)
Ball bearing
SKF
Ambient temperature
-15°C to +40°C
Maximum installation height.
1000 m
Versions
| Artikel-Nr | Bild | Network | Performance frequency converter (kW) | Motor power (kW) | wave (mm) | Rated speed at 50Hz (min-1) |
|---|---|---|---|---|---|---|
| 0098.1200 18 |  | 1Ph-230V | 0.75 | 0.75 | 19 | 1420 |
| 0098.1201 18 | | 1-phase-230V | 0.75 | 0.75 | 19 | 1420 |
| 0098.1202 5 | | 1Ph-230V | 1.5 | 1.5 | 24 | 2870 |
| 0098.1203 5 | | 1 phase - 230V | 1.5 | 1.5 | 24 | 1430 |
| 0098.1204 1 | | 1-phase 230V | 2.2 | 2.2 | 24 | 2870 |
| 0098.1205 1 | | 1-phase-230V | 2.2 | 2.2 | 28 | 1440 |
| 0098.1210 9 | | 3-phase 400V | 0.75 | 0.75 | 19 | 2860 |
| 0098.1211 9 | | 3-phase 400V | 0.75 | 0.75 | 19 | 1420 |
| 0098.1212 19 | | 3-phase 400V | 1.5 | 1.5 | 24 | 2870 |
| 0098.1213 19 | | 3-phase 400V | 1.5 | 1.5 | 24 | 1430 |
| 0098.1214 5 | | 3-phase 400V | 2.2 | 2.2 | 24 | 2870 |
| 0098.1215 5 | | 3-phase 400V | 2.2 | 2.2 | 28 | 1440 |
| 0098.1216 6 | | 3-phase 400V | 4.0 | 3.0 | 28 | 2890 |
| 0098.1217 6 | | 3-phase 400V | 4.0 | 3.0 | 28 | 1440 |
| 0098.1218 6 | | 3-phase 400V | 4.0 | 4.0 | 28 | 2890 |
| 0098.1219 4 | | 3-phase 400V | 4.0 | 4.0 | 28 | 1440 |
| 0098.1220 | | 3-phase 400V | 5.5 | 5.5 | 28 | 2900 |
| 0098.1221 | | 3-phase 400V | 5.5 | 5.5 | 28 | 1440 |
| 0098.1222 5 | | 3Ph-400V | 7.5 | 7.5 | 38 | 2920 |
| 0098.1223 5 | | 3-phase 400V | 7.5 | 7.5 | 38 | 1450 |
| 0098.1224 19 | | 3-phase 400V | 1.5 | 1.1 | 19 | 2860 |
