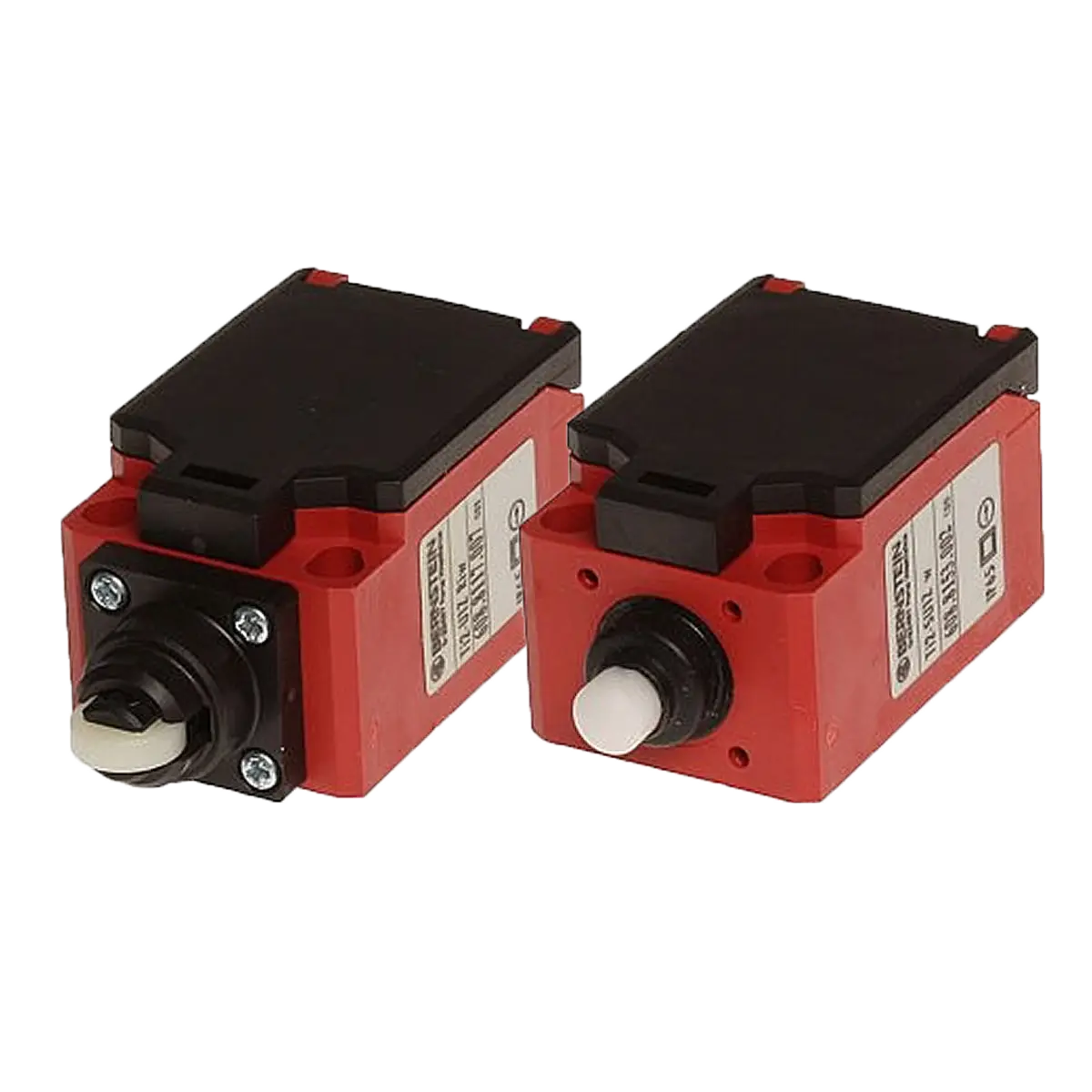

Limit switches
according to IEC 947, EN 60947
Description
Features
- Compact switch for safety applications in IP65
- With non-removable latch cover
- Roll actuation can be converted 4x90°
- 2 variants available
- Integrated short-circuit device
These limit switches meet the requirements for safety circuits according to IEC204, EN60204-1 through positively opening contacts.
Series Specifications
Electrical data
Rated insulation voltage Ui
250 VAC
Conventional thermal current Ith
10 A
Rated operating voltage Ue
240 V
Usage category
AC-15, Ue/Ie 240V/3A
Forced opening
According to IEC/EN 60947-5-1, Annex K
Short-circuiting device
Melting fuse 6A gL/gG
Protection class
II, double insulated
B10 (B10d)
3,000,000 (4,500,000)
Mechanical Data
Housing
PBT
Cover
PA6.6
Actuation
Roller or piston (thermoplastic)
Ambient temperature
-30°C ... +80°C
Contact type
1 normally open contact, 1 normally closed contact (e.g.)
Mechanical lifespan
3x106 switching cycles
Fastening
2x M4 or 2x M5 fixed positioning for safety applications
Connection type
4 screw terminals (M3.5)
Conductor cross-sections
Single-stranded 0.5 - 1.5mm² / stranded wire with ferrule 0.5 - 1.5mm²
cable entry
1x M16x1.5
Weight
approximately 50 gr
Installation position
arbitrary
Protection class
IP65 according to EN60529, DIN VDE 0470 T1
Manufacturing
German manufacturer
