Starter K3000 3Ph

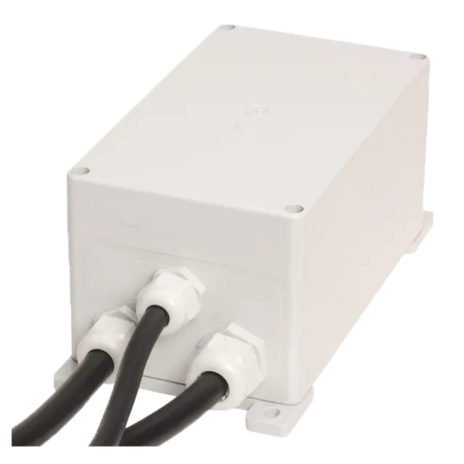

Starter K3000 3Ph-400V
with undervoltage release and overload protection, external start-stop possible, thermal contact connection available
Item No. 0099.0661
3m control cable A07RN-F 3x1.5 for connecting an external start-stop / emergency stop control unit
Versions
| Item No. | Manufacturer ID | Delivery Time | Stock | Quantities / Prices |
|---|---|---|---|---|
| 0099.0661 | 0099.0661 | 1 day(s) | 5 |
Technical Features
Series Specifications
Startup
Direct startup
Rated operating voltage Ue
400V/50Hz
rated switching capacity
4.0kW/7.5kW 400V/AC-3
Rated operating current Ie
16A
Connection
3-phase 400V
contactor
KB-04 / Klibo 7.5
Under-voltage release Uc
230V/50Hz or 400V/50Hz
Network input
CEE collar plug or power cable
Type of actuation
Push buttons On/Off
actuation
mechanical On/Off (KB-04); electrical On/Off (Klibo7.5)
Keypad
with protective cap
Installation position
Arbitrary, except keyboard upwards.
Mounting dimension
68x68mm or with mounting tabs
Switching functions
0-1
Pre-insurance
16A gL/gG
Ambient temperature
-10°C...+40°C
Enclosure material
ABS gray or yellow
Impact resistance
IK08
Material collar plug
PA6 red
Degree of protection
IP54
Conformity
CE
Individual Parameters
Network input
3m H07RN-F 5G 1.5 with CEE plug 3P+N+E 16A 400V with phase changer
Motor connection
2m H07RN-F 7G1.5 with connection option for a thermal contact, neutral conductor included (potential-free, no PTC)
Undervoltage release Uc
230V/50Hz
electronic brake
No
Circuit for mechanical brake
No
Overload protection
Yes, 3-pole.
Setting overload protection
1...16A, fixed setting - Please specify motor rated current at the end of the ordering process.
Emergency stop
Yes
Rotary field detection
No
Pole switch
No
L-0-R switching
No
Limit switch connection possible
No
Fastening
87x194mm
Mounting tabs
Yes
switching frequency
60/h
degree of protection
IP55
Weight
2.70 kg
Manufacturer
Klinger & Born GmbH, In den Schlangenäckern 5, DE - 64395 Brensbach
Downloads
Dimension drawing Wiring diagrams Security information
