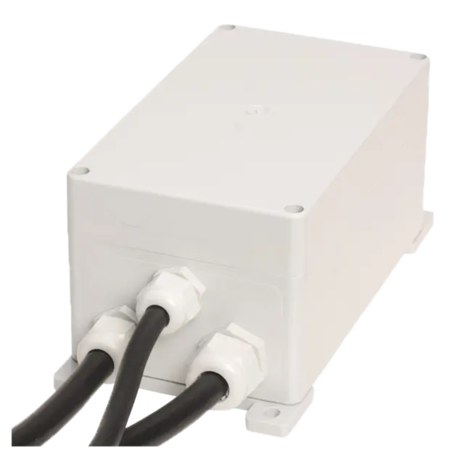

Starter K3000 3Ph
Starter K3000 3Ph-400V
with under-voltage release, for external start-stop, thermocontact connection possible
Item No. 0099.0662
Under-voltage release according to IEC 204-1, EN 60204, VDE 0113, Section 7.5, for protection against automatic restart after voltage drop and voltage recovery
with 3m control cable A07RN-F 3x1.5 for connection of an external start-stop / emergency stop switch unit
Versions
| Item No. | Delivery Time | Stock | Quantities / Prices |
|---|---|---|---|
| 0099.0662 | 1 Tag(e) | > 5 | 98,16 € netto |
Technical Features
Series Specifications
Startup
Direct startup
Rated operating voltage Ue
400V/50Hz
Rated operating current Ie
16A
Connection
3-phase 400V
Keypad
with protective cap
Pre-insurance
16A gL/gG
Installation position
Arbitrary
Ambient temperature
-10°C...+40°C
protection class
Enclosure IP54 (Higher protection class on request)
Impact resistance
IK08
Conformity
CE
Individual Parameters
Switching power
7.5kW 400V~/AC-3
contactor
Klibo7.5
With shock attachment (protection against unintentional starting after a voltage drop)
No
Network input
3m H07RN-F 5G 1.5 with CEE plug 3P+N+E 16A 400V with phase changer
Motor connection
2m H07RN-F 7G1.5 with the possibility of connecting a thermal contact, neutral conductor included (potential-free, no PTC)
additional line input
3m control cable A07RN-F 3x1.5 for connecting an external start-stop / emergency stop control unit.
Type of operation
External
Actuation
electric on/mechanical off
Switching functions
0-1 external
switching frequency
60/h
Undervoltage release Uc
230V/50-60Hz
Control circuit fuse
No
electronic brake
No
Circuit for mechanical brake
No
Overload protection
No
Emergency stop
Optional
Rotary field detection
No
Pole switch
No
Limit switch connection possible
No
Mounting dimension
87x194mm
Mounting tabs
Yes
Weight approx.
2,512 kg
Hersteller
Klinger & Born GmbH, In den Schlangenäckern 5, DE - 64395 Brensbach
