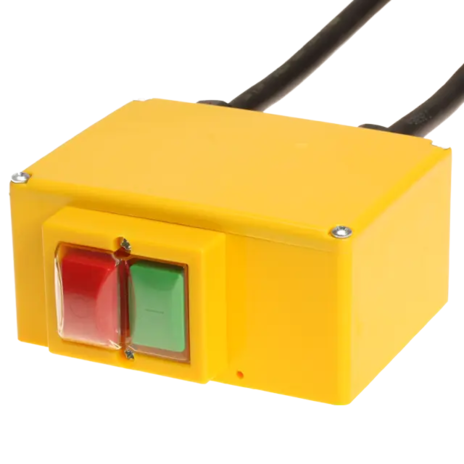

Starter K400 3Ph-400V
Starter K400 3Ph

Starter K400 3Ph-400V

with undervoltage release

Item No. 0098.4210



Undervoltage release in accordance with IEC204-1, EN60204, VDE0113, section 7.5, for protection against automatic restart after voltage dip and voltage recovery

Versions
Item No.Delivery TimeStockQuantities / Prices
0098.4210 1 day(s) 2 from 1 Stück: 82,78 €
69,56 € Net
82,78 €
69,56 € Net   inkl. VAT­ + Shipping
Technical Features
Series Specifications

Start-up

Direct start

Rated operating voltage Ue

400V/50Hz

rated switching capacity

4.0kW 400V~

Rated operational current Ie

9.0A

Connection

3-phase 400V

Contactor

KB-04

Network input

Network cable

Actuation type

Push buttons on/off

Button panel

with protective cap

Installation position

Arbitrary, except for keyboard upwards.

Mounting dimension

68x68mm

Switching functions

0-1

Switching frequency

60/h

pre-insurance

16A gL/gG

Ambient temperature

-10°C...+40°C

Housing material

ABS black or yellow

Protection class

IP54

Conformity

CE

Individual Parameters

network input

2m H07RN-F 4G 1.5 with CEE connector 16A 400V

Motor connection

1m H07RN-F 4G 1.5

Under-voltage release Uc

400V/50Hz

electronic brake

No

Overload protection

No

Actuation

mechanical on/off

Switching frequency

60/h

Weight

1,205 kg


Manufacturer
Klinger & Born GmbH, In den Schlangenäckern 5, DE - 64395 Brensbach

Downloads

Download current page as PDF


Dimension drawing
Circuit diagram
Security information
Downloads for the Series
Dimension drawings
The connection and installation of devices that are not ready for connection may only be carried out by a qualified specialist.
