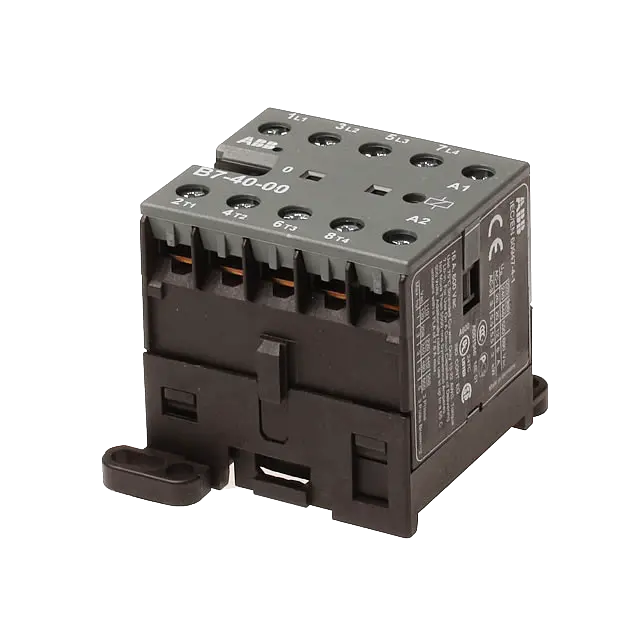

Contactor ABB B7 series
according to IEC 947-4-1, EN60947, DIN VDE0660 Part 102
Description
Features
- Compact small relay
- Mounting via screws
- Powerful variant
- Expandable with auxiliary contacts
- Expandable with thermal overload relay
Series Specifications
Rated operating voltage Ue
690 V
Rated insulation voltage Ui
690 V
Rated lightning impulse voltage strength Uimp
6 kV
Rated operational power AC-3
230V 3.0kW / 400V 5.5kW
Versions
| Artikel-Nr | Bild | Designation | Rated operational power AC-3 at 400V (kW) | Rated operational power AC-3 at 230V (kW) | Rated current AC-3 at 400V (A) | Coil voltage (V) | Number of contacts | Expandable through auxiliary switches |
|---|---|---|---|---|---|---|---|---|
| 4036.6400 > 5 |  | B7-30-10 | 5.5 | 3.0 | 12 | 220...240V 40-450Hz | 3s1Hs | Yes |
| 4036.6410 > 5 | | B7-30-01 | 5.5 | 3.0 | 12 | 220...240V 40-450Hz | 3s1Hö | Yes |
| 4036.6411 1 | | B7-30-10 | 5.5 | 3.0 | 12 | 110...127V 40-450Hz | 3s1Hs | Yes |
| 4036.6499 > 5 | | B7-40-00 | 5.5 | 3.0 | 12 | 220...240V 40-450Hz | 4no | Yes |
| 4036.6500 > 5 | | B7-30-10 | 5.5 | 3.0 | 12 | 380...415V 40-450Hz | 3s1Hs | Yes |
| 4036.6501 > 5 | | B7-30-01 | 5.5 | 3.0 | 12 | 380...415V 40-450Hz | 3s1Hö | Yes |
| 4036.6510 3 | | B7-40-00 | 5.5 | 3.0 | 12 | 380...415V 40-450Hz | 4no | Yes |
| 4036.6511 > 5 | | B7-30-10 | 5.5 | 3.0 | 12 | 12V DC | 3s1Hs | Yes |
| 4036.6521 > 5 | | B7D-30-10 | 5.5 | 3.0 | 12 | 24V DC with suppression diode | 3s1Hs | Yes |
| 4036.6522 3 | | B7D-30-01 | 5.5 | 3.0 | 12 | 24V DC with suppression diode | 3s1Hö | Yes |
| 4036.6523 > 5 | | B7-30-10 | 5.5 | 3.0 | 12 | 24V 40-450Hz | 3s1Hs | Yes |
| 4036.6524 1 | | B7-30-01 | 5.5 | 3.0 | 12 | 24V 40-450Hz | 3s1Hö | Yes |
