Switch-on automatic 3Ph-400V combo

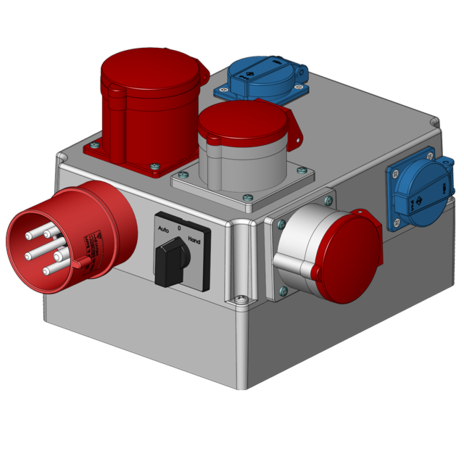

Switching automatics 3-phase combo 32A with CCST converter board and selector switch Hand-0-Auto for extraction.
Master: 1x CEE socket 3P+N+E 400V 32A, 1x CEE socket 3P+N+E 400V 16A, 1x Schuko socket 2P+E 230V. Slave: 1x CEE socket 3P+N+E 400V, 1x Schuko socket 2P+E 230V.
Item No. 0098.3843
Versions
| Item No. | Delivery Time | Stock | Quantities / Prices |
|---|---|---|---|
| 0098.3843 | On request | 281,89 € netto |
Technical Features
Individual Parameters
Input voltage
400V/50Hz
Network connection
CEE plug 3Ph-400V 32A
total load
15kW 32A
Max. current
32 A
Please note
The permissible total connection power of the master and slave must not exceed the specified total load.
Max. switching frequency
20/h
Adjustable switching times
Yes
Mode selector switch
Yes
Number of master sockets
1x CEE socket 32A 3P+N+E 400V, 1x CEE socket 16A 3P+N+E 400V, 1x Schuko socket 2P+E 230V.
Protection of master sockets
CEE socket 32A/400V - without; CEE socket 16/400V and Schuko socket 16A/230V with MS25 10-16A.
Number of slave sockets
1x CEE socket 3P+N+E 400V/16A 1x Schuko socket 2P+E 230V
Contactor for slave
Klibo 7.5
switch-on threshold
~0.2...1.8A adjustable
Switch-off threshold
~0.15...1.3A
turn-on delay
~0.5...8s
Power-off delay
~0.2...13s
Protection of slave sockets
CEE socket 16/400V and Schuko socket 16A/230V with MS25 10-16A
Fastening
With through holes, hole size 223 x 152mm, 5.3mm diameter.
Dimensions
301x244x182 mm
degree of protection
Housing IP54, socket IP44
ambient temperature
-10°C...+40°C
Weight approx.
2.9 kg
Hersteller
Klinger & Born GmbH, In den Schlangenäckern 5, DE - 64395 Brensbach
